Description
Technology Category Technical Parameters
Usage

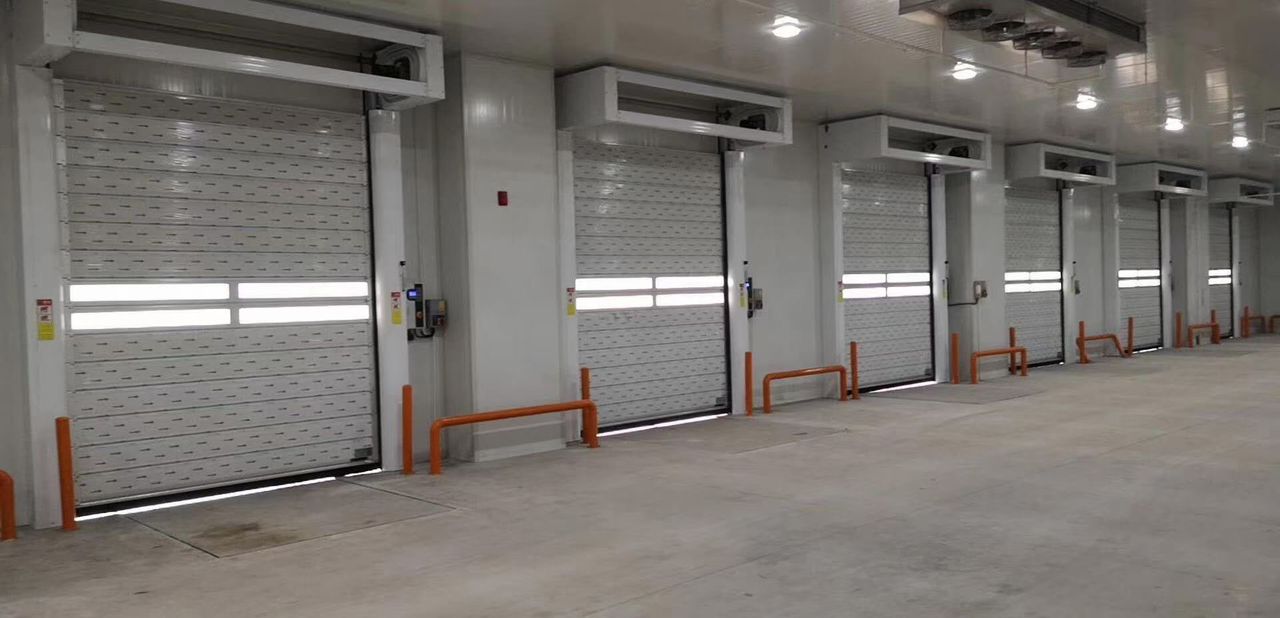

Underground Garage channel used in various fields. chemical, pharmaceutical, automotive
and food processing, Wind insulation has security features such as fast
Door Size Width
1250-7000MM Height:2000-8000MM
Wind strength
Wind performance 3.5KPA reached 6GB, wind 12
Opening speed
Opening speed 1-2.0M/S

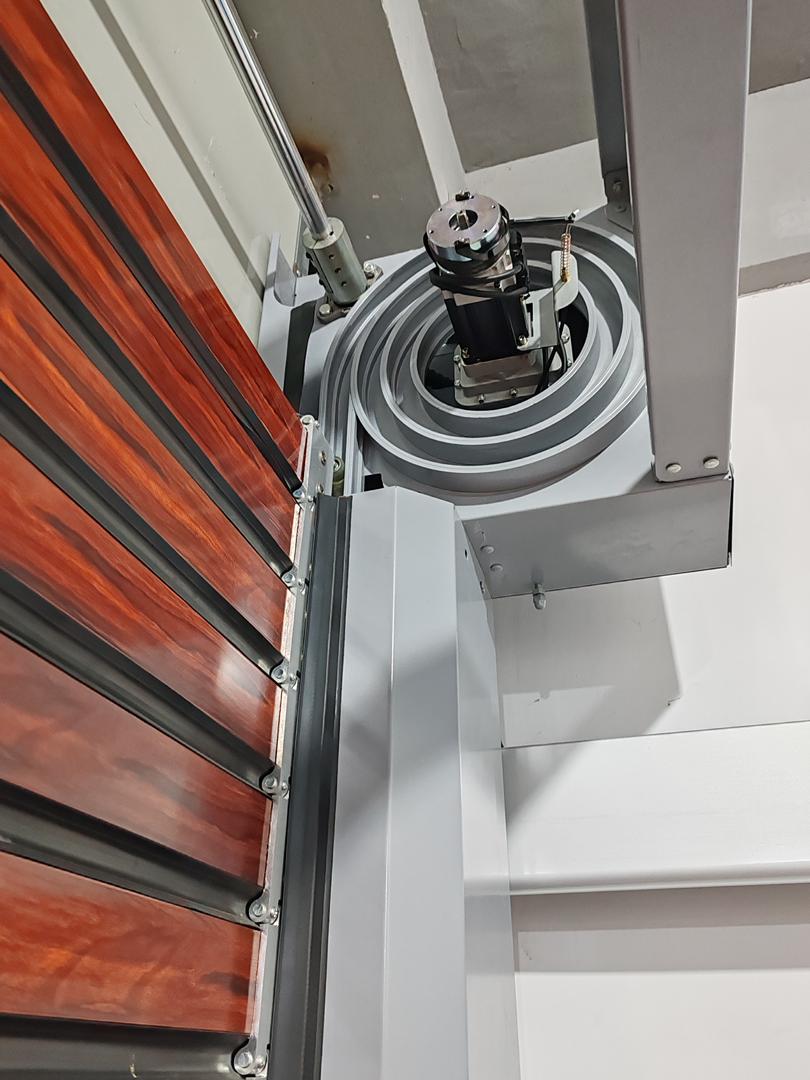

Guide
Double spiral turbo aluminum rails, door rises when no contact between the door and the
connecting member, no wear. Smooth switching speed smoothly.
Door frame
Environmental quality CNC bending galvanized sheet molding thickness 3MM, external
appearance and dustproof

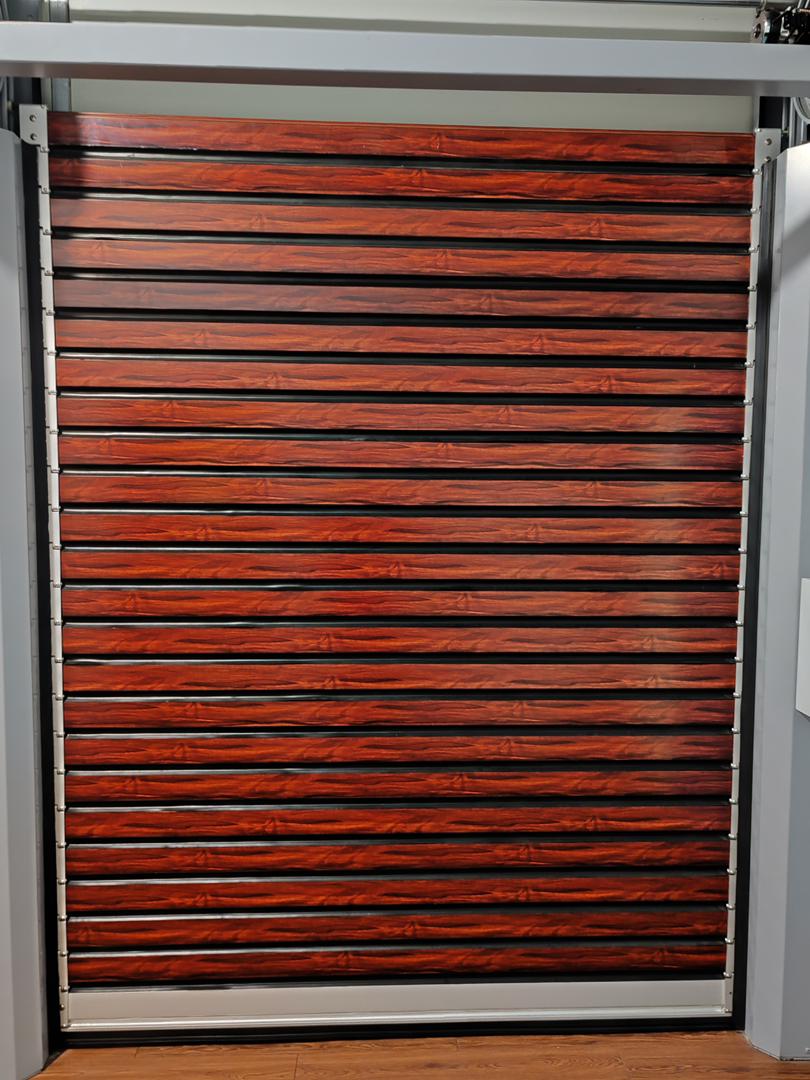

Door Material
40MM aluminum door is not less than the thickness of the internal filling polyurethane
insulation materials industry. Adopt international heat treatment method of the bridge, to the
domestic energy-saving window and doors 7 standard.
Perspective window
Aluminum frame with double polycarbonate plate, good transparency. High temperature anti-Joe injury.Height:around 180MM
Drive Control System
System error code by LED touch screen display function, easy to modify the operating
parameters an also set the system password:
1. has turned protection when the motor drive controller direct lines are wrong door stop alarm
system comes with variable frequency operation
2. Limit repair function, and without external electromagnetic brakes can stop the motor at the
specified location so that when the door is not the limit stop error.
3.memory function after power failure, the direct power-on reset operation can no need to
manually again after power failure
4.adjustment motor with overload current protection.
State of emergency
When a power outage, or manually. With the balance of the system will hold up the door, the
door can be an effective solution due to power failure or malfunction caused the problem can
not be opened
Safety devices
1. an infrared security electric eye: both sides of the door with a quick eye on the door beneath
the radio when there is an obstacle protection door open. An object throuth the door will
automatically return to the open position again to be timely closed below no obstacle when the
door close.
Open the way
Radar, geomagnetic sensor, Bluetooth, remote sensing, hand switch
